C12 & C24

PCB for Pre 2015 Controller Units

£18.00

Ex Tax: £15.00

Spare PCB for C12 and C24 Controller Units with the Black Mechanical Dial

Availability: Out Of Stock
Product Code: IRR-PCB

Spare PCB for C12 and C24 controller units with mechanical dial

If your controller unit has a red button and LCD, then you will need the IRR-PCB-LS instead.

How to Replace the SOL-C12/C24 PCB

Remove knob from shaft – it just pulls off

Remove 5 screws and open case lid

Unplug battery holder (lid), solar panel, pump and any accessories connected. (Support the PCB while plugging/unplugging connections)

Undo collar nut on outside of case – carefully work the PCB from its hole

Plug the hard to reach accessories onto the new PCB, it is much more difficult once in place

Work the PCB into position ensuring that the LED is positioned to go into its hole in the case. Make sure the locating lug on the PCB is in the correct position so the PCB cannot turn

Replace the collar nut

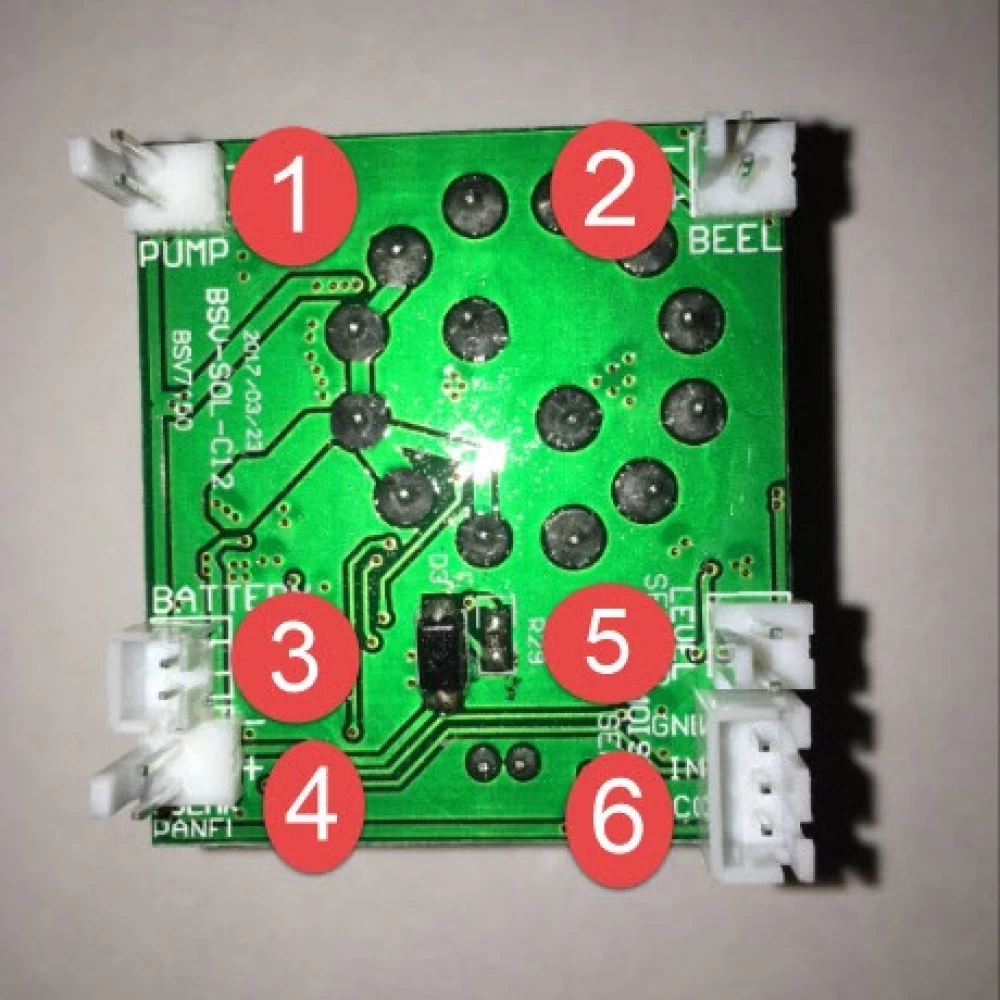

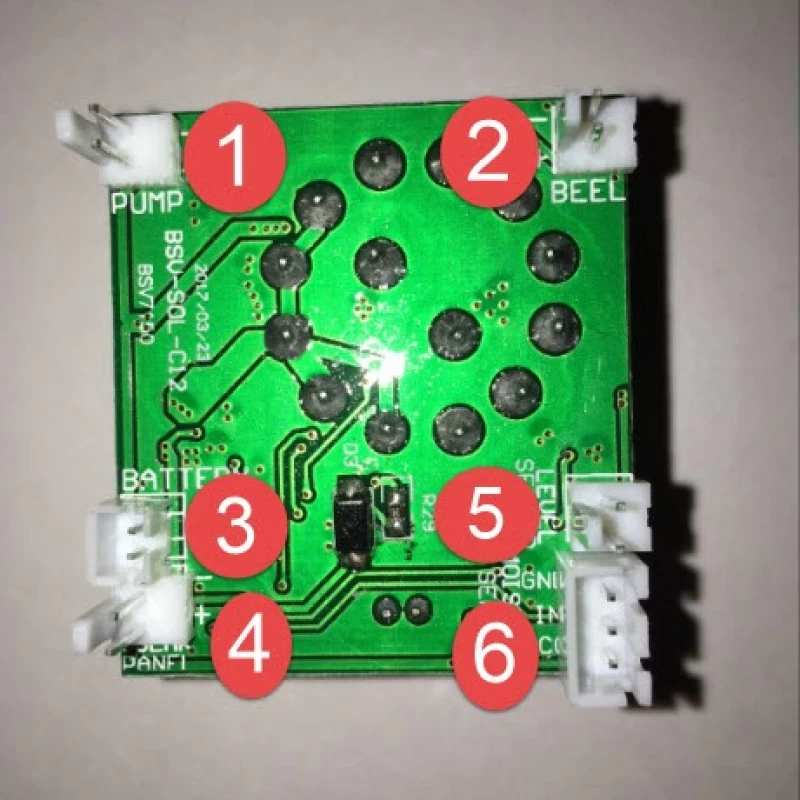

Plug in remaining connectors – the connections on the PCB are labelled

Replace the lid

Push the knob onto its shaft ensuring the pointer is in the right position. Do not push too hard as this can damage the switch.
